当前位置：产品中心 >> CLUB LED >> 180W LED Spot_X-180_SC3681

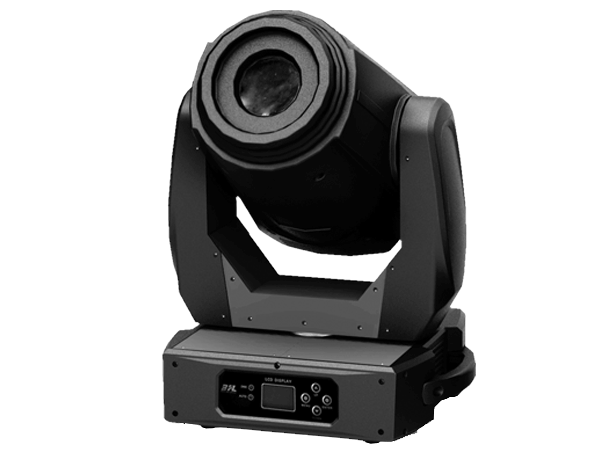

180W LED Spot

型号：X-180

产品编号：SC3681

Click here to Check English webpage

已停产

180W LED Spot参数

LED’S Count:3X60W LUMINUS
Drive Current :16A
Rated Voltage:100~240V,50/60Hz
Power Consumptioin:300W
Display panel control：128x64 dot matrix display + 4 keys combination
Control protocol:DMX512
DMX Channels:12CH/17CH
Scanning Angle：Pan:630°,Tilt:260°
Rotating gobos plate：6 Gobos，Gobos water-run effect， Gobos rotating，
Gobos Jitter ，Forward and reverse rotation
Replaceable gobos plate ：7Gobos，Gobos water-run effect，
Gobos Jitter ，Forward and reverse rotation
Color plate：7Gobos+White，Water-run rainbow effect，Half color mixture

Technical Specifications

LED’S Count:3X60W LUMINUS
Drive Current :16A
Rated Voltage:100~240V,50/60Hz
Power Consumptioin:300W
Display panel control：128x64 dot matrix display + 4 keys combination
Control protocol:DMX512
DMX Channels:12CH/17CH
Scanning Angle：Pan:630°,Tilt:260°
Rotating gobos plate：6 Gobos，Gobos water-run effect， Gobos rotating，
Gobos Jitter ，Forward and reverse rotation
Replaceable gobos plate ：7Gobos，Gobos water-run effect，
Gobos Jitter ，Forward and reverse rotation
Color plate：7Gobos+White，Water-run rainbow effect，Half color mixture

Function features

◆Gobo plate/Color plate can be set in the operation of the closed light
◆Horizontal/vertical Angle of scanning range can be set/horizontal/vertical reverse
◆Three-phase stepper motor driver X axis & Y axis
◆Superior optical system, strong output light efficiency, ultra high brightness
