当前位置：产品中心 >> CLUB LED >> High Power LED Rinbow_LED-100_SC3682

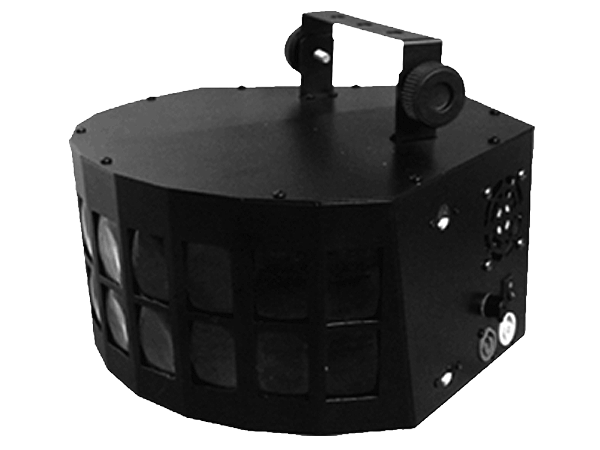

High Power LED Rinbow

型号：LED-100

产品编号：SC3682

Click here to Check English webpage

已停产

电子资料

High Power LED Rinbow参数

Rated Voltage:AC90~260V 50~60Hz
Power Consumptioin: 170W
LED's Count:2PCS LUMINUS 45W RGBW 4IN1
DMX Channels:8CH、12CH
Control Mode: DMX512, Master/Slave and Stand Alone
Refresh Rate: 6000Hz
Dimming Mode:15bit-resolution.0---100% linear dimming
Beam Angel:120°
Size:420（L）X420（W）X250（H）mm
N.W:4.5kg
G.W:6.25kg

Related images

Technical Specifications

Rated Voltage:AC90~260V 50~60Hz
Power Consumptioin: 170W
LED's Count:2PCS LUMINUS 45W RGBW 4IN1
DMX Channels:8CH、12CH
Control Mode: DMX512, Master/Slave and Stand Alone
Refresh Rate: 6000Hz
Dimming Mode:15bit-resolution.0---100% linear dimming
Beam Angel:120°
Size:420（L）X420（W）X250（H）mm
N.W:4.5kg
G.W:6.25kg

Function features

◆With 32 bit micro processor controlled system
◆6KHz high refresh frequency, camera flicker free
◆With 15bits resolution, makes it true linear and smooth dimming
◆And stepping motor adopts 128 steps high segmentation, microstep processing technology, super silent no-polar rapidly rotating,
◆Temperature control fan refrigeration cooling ，over voltage and current protection function, can make the LED life increased by 20%
◆Use ultra-high brightness, low power consumption, high efficiency, 50000-100000 hours of long life import LED lamp source;
◆Using LED constant current stability drive technology, make high power LED light source exert its maximum optimal light effect
◆DMX512 standard compliant

Related download
Warm remind: please right click on the download link through the save target as to download.
