Products >> Stage UV Lamps >> UV Black Lights_LD102-1803F UV_SC3830
UV Black Lights
Model：LD102-1803F UV
Item：SC3830
UV Black Lights / LD102-1803F UV Technical Parameters:
Rated voltage: AC90~240V 50~60Hz + 10%
Rated power: 60W
Power series connection: <700VA (please do not connect over than 5 units)
LED Chips: 18x395nm UV LED
Control Mode: DMX-512 / Static
DMX-512 Channels: 1Ch / 3Chs
Dimming effect: 0~100% dimming or Fading Dimming
Beam angle: 90 x 120 degrees
Dimensions: 457 x 98 x 155mm
N.W: 2.42kg
LED UV Bar
This UV Bar We get the idea from one friend. He said his company are looking for the UV Lighting, but not the normal sampe and cheaper one, something like sky row, but more smaller. By the end , We make this LD102-1803F UV from him.
Jan. 2018, We upgrade the complete electron part.
1. Refresh frequency up to 5KHz.
2. Re-program the fan speed control to 16bit function. Very smooth cooling systems, almost can not hear.
3. Special UV Lens, the beam angle up to 60*90 Deg. Can not see any hot spot.
In 2017, We are the UV bar and laser show system sponsor for "Apologue 2047" theatre show. We using 4x LD102-1803F UV Bar for the show.
Check pictures...

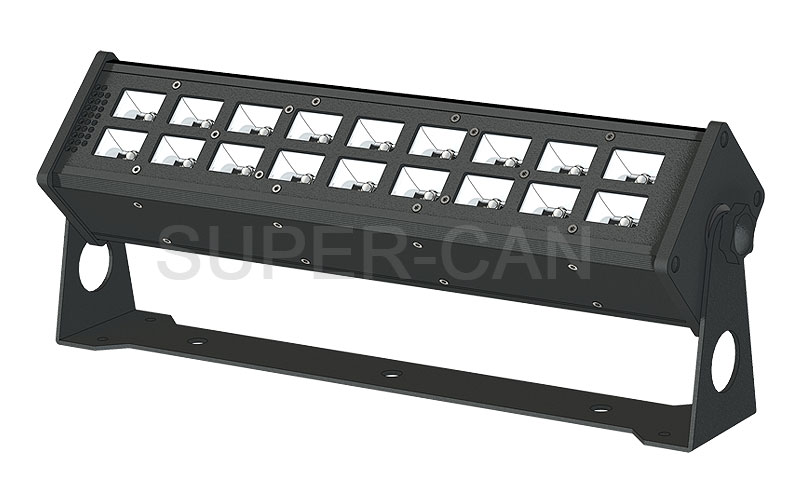

LD102-1803F UV Bar Black Lights
New UV LED Drivers
45mil 395nm UV LED Chips
Stage UV Bar
